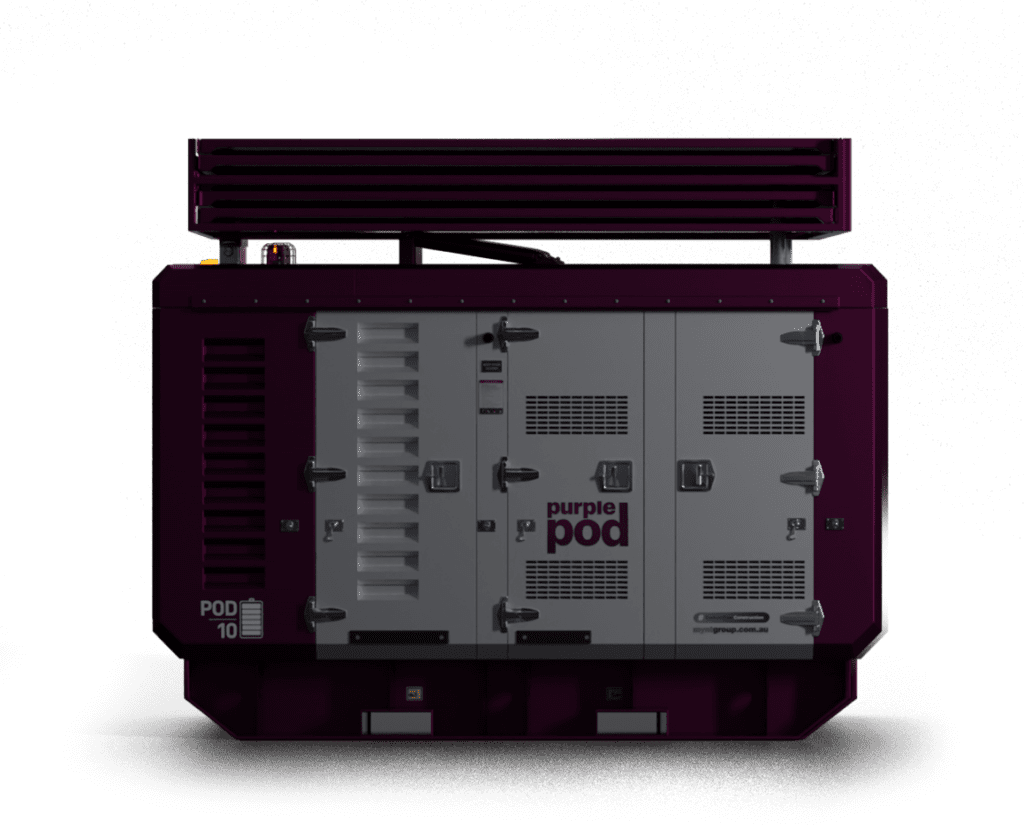

The Purple Pod is a compact hybrid energy unit designed to replace diesel generators up to 45kva. An all in one, compact renewable solution, the Purple Pod includes a fuel optimised diesel generator, a 2kw solar cassette, up to 60kw/h of LiFePO energy storage and a fully remotely controllable inverter package that enables you to see and control everything that’s happening on your site from any location with a mobile phone signal. In most applications, the Purple Pod will reduce your daily reliance on diesel generators by between 90 and 100%.
General Specs
| Model | POD - 10 |
| System Rated Output Power | 10 kVA |
| Rated Output Voltage | 400V/230V@50Hz/60Hz |
| Min.Battery Storage Capacity | 10 kWh |
| Max.Battery Storage Capacity | 20 kWh |
| Output Terminals | Copper terminals & CEE 16A/5P Socket |
| Loading Dimension(W*D*H) | 2928 x 1150 x 2350mm |
| Expand Dimension(W*D*H) | 2928 x 5400 x 3350mm |
| Net Weight (Kg) | 2319kg |
| Loading Capacity of 40’HC | 8 units |
| Discharge Temperature Range °C | -20 to 50 |

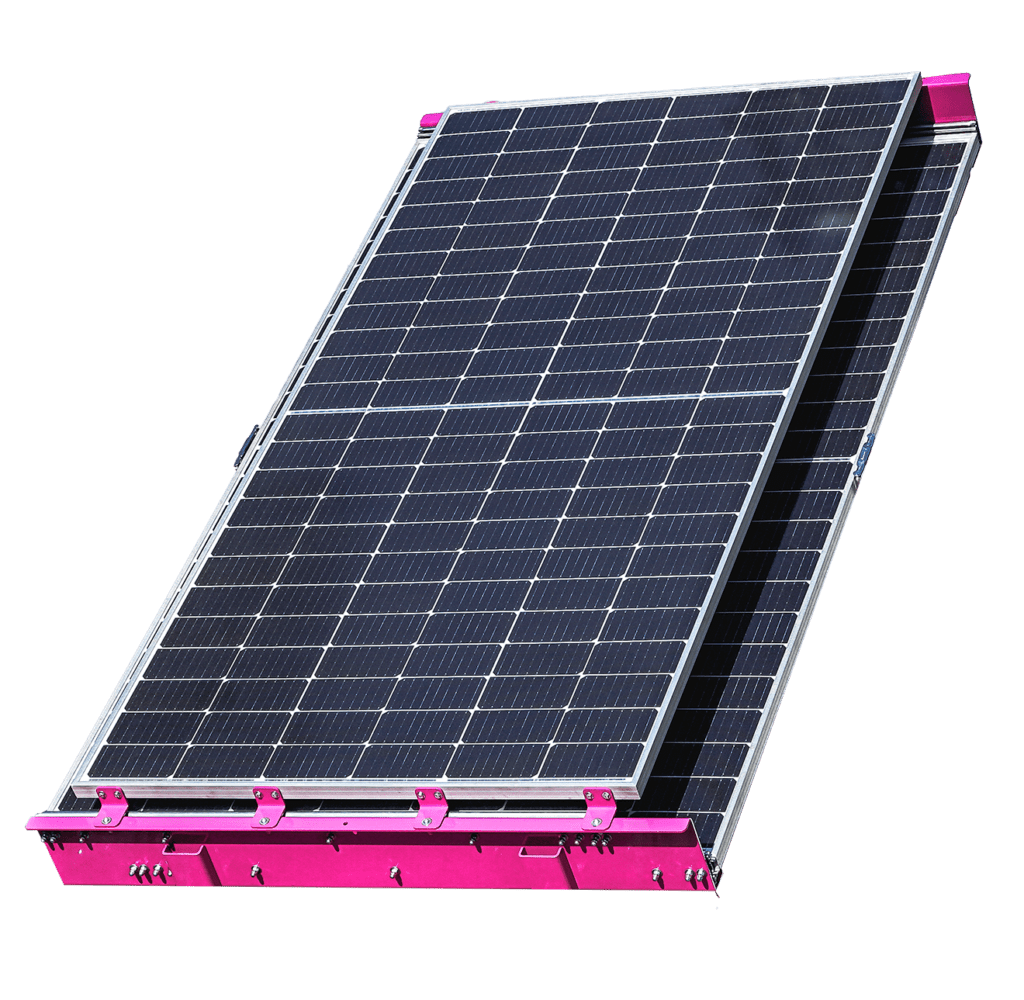

Solar Panel
| Maximum Power | 460W |
| Power Tolerance | 0~+5W |
| Max-Power Voltage (Vm) | 41.96VDC |
| Max-Power Current (Im) | 13.11A |
| Base Functions | Automatic Start-up / Alarm / Automatic Stop / Emergency Stop |

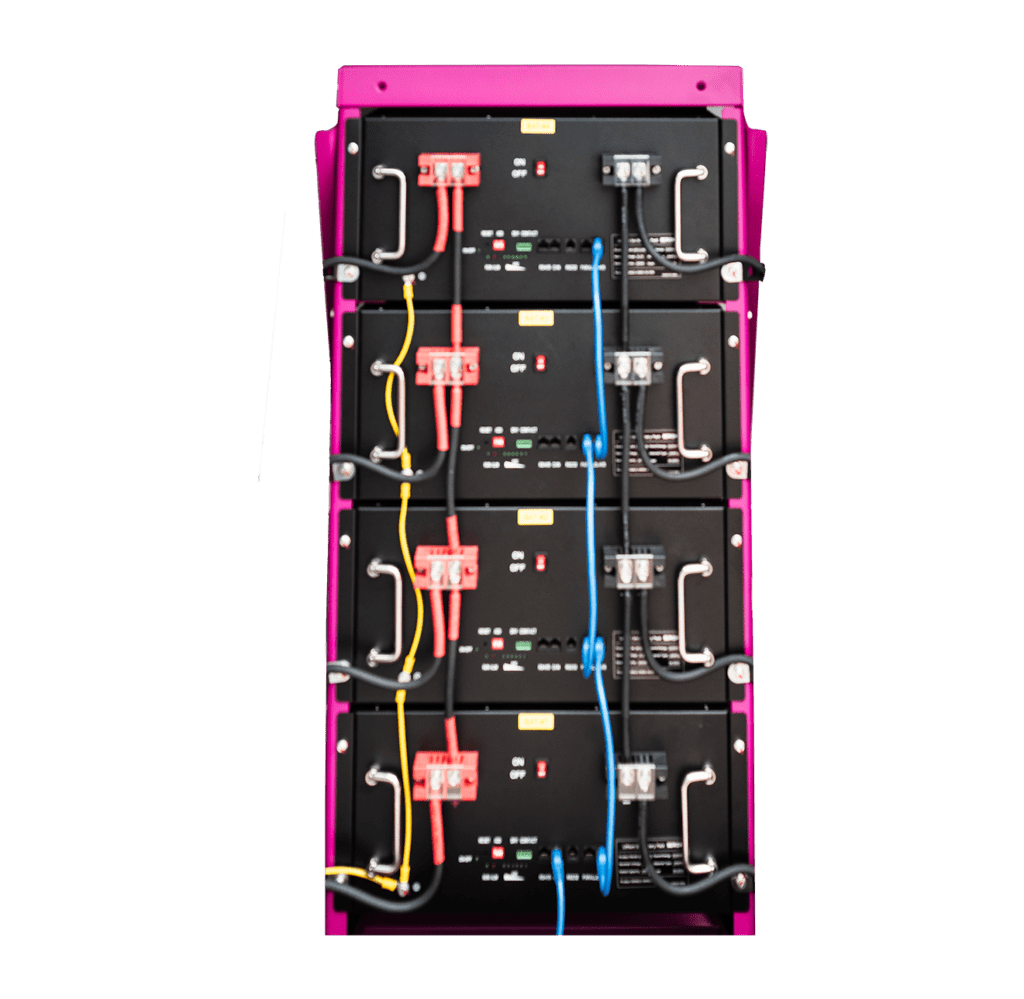

Energy Storage Battery
| Cell Type | LFP(LiFePO4) |
| Pack Model | MF51100D |
| Pack Capacity | 5 kWh |
| Pack Rated Voltage | 51.2 VDC |
| Discharge Depth | 90% |
| Charger/Discharge Current | 97.7 A(1.0C) |
| Battery Rack Voltage | 43.2V~59V |
| Rated Cycle Life | >2000 80% DOD |
Hybrid Inverter System
| Solar Controller | MPPT*2 |
| EMS | - |
| Max.PV Current | 26A X 2 |
| Max.Charge/Discharge Current | 210A |
| Discharge Depth | 90% |
| Max.Conversion Efficiency | 97.6% |
| Rated Output Power | 10kW (0.8leading~0.8lagging) |
