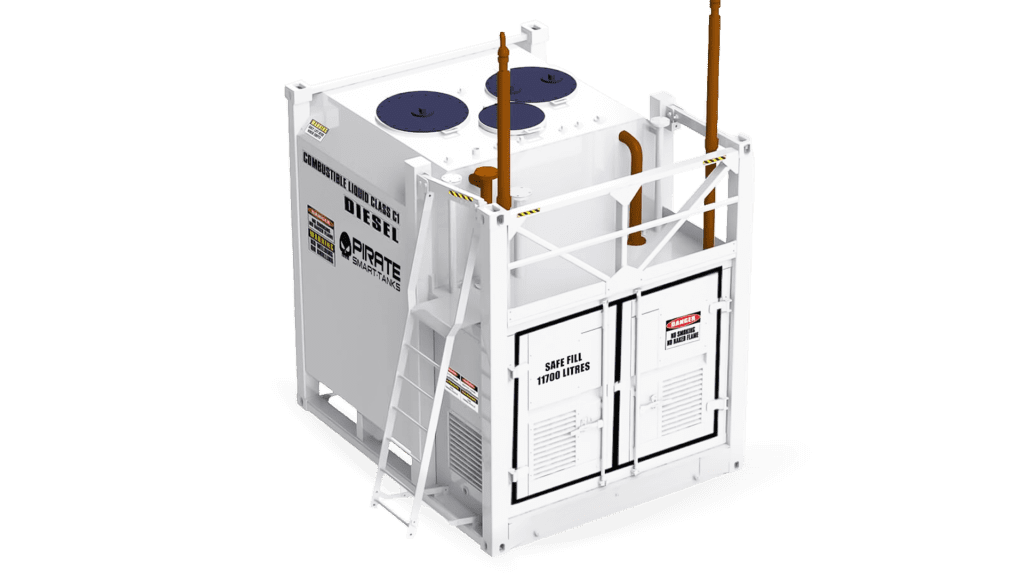

Baffled Fuel Tank

SS 12

Lift And Shift

◦ Fully Bunded
◦ Containerised
◦ Mine Spec

The PIRATE Smart Tank Static Storage range is the ultimate bulk storage fuel solution for Mining, Industrial, Construction and Rental applications. From 8kl to 100kl, Pirate Static Storage tanks have certified lift points for crane lifting and are fully bunded and mine spec compliant.

Standard

SS 12

Features

Baffled Can be transported full of fuel

Storage and Dispensing of Diesel, Lubricants, Kerosene, Petrol & Waste Oil

Culus Listed, tested to UL requirements

Capacity

12,000L

Safe Fill Level

11,240L

Empty Weight (kg)

4500

Capacity	12,000L
Safe Fill Level	11,240L
Dimension (LxWxH) mm	3,000 x 2,438 x 2,896
Empty Weight (kg)	4500

Standard SS Feautre

Internally Baffled

Full Range

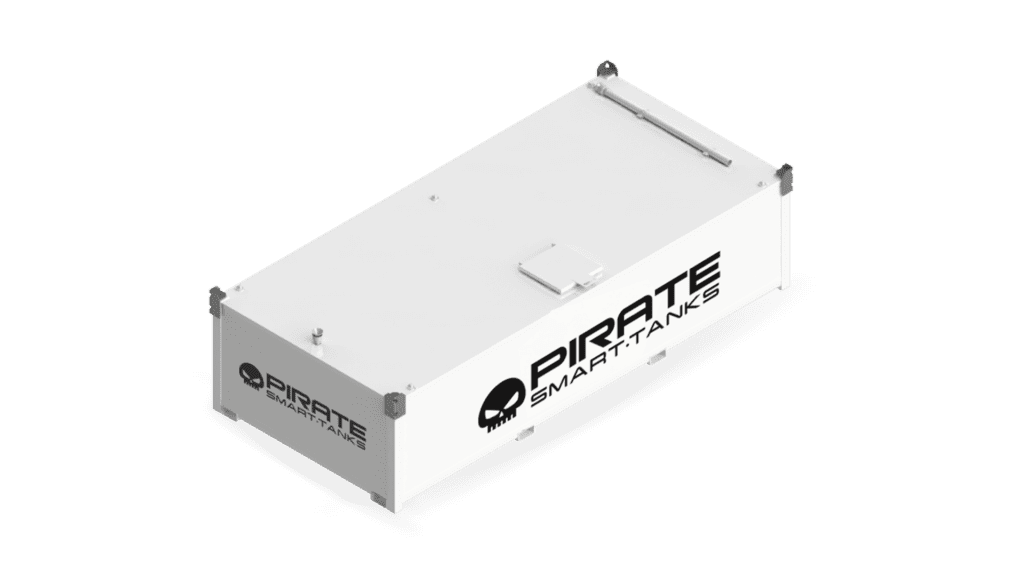

SS 10

Safe Fill Level (L)

10,000L

Dry Weight (Kg)

2689

SS 12

Safe Fill Level (L)

11,240L

Dry Weight (Kg)

4500

SS 20

Safe Fill Level (L)

17,285L

Dry Weight (Kg)

4500

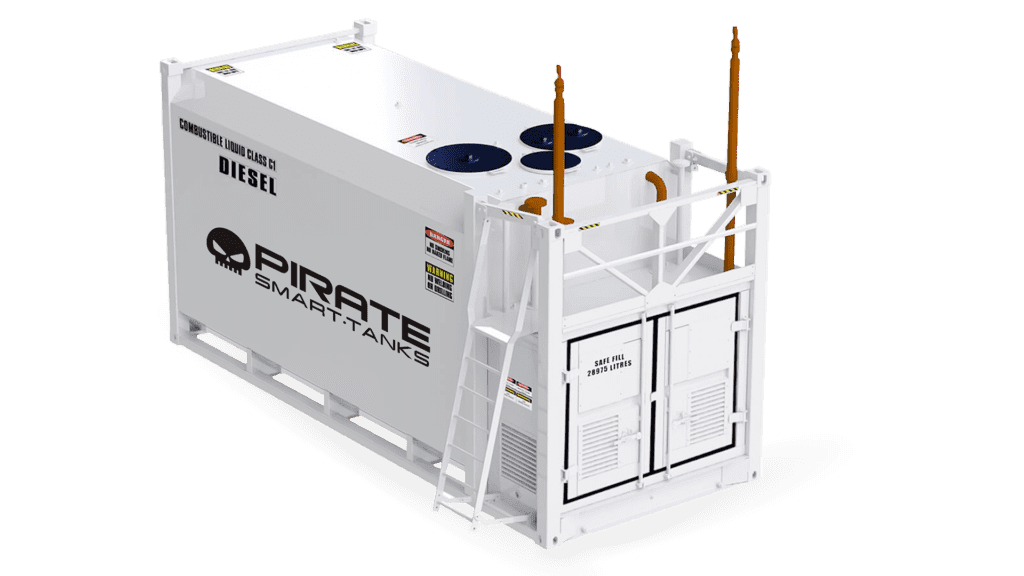

SS 30

Safe Fill Level (L)

29,350L

Dry Weight (Kg)

7500

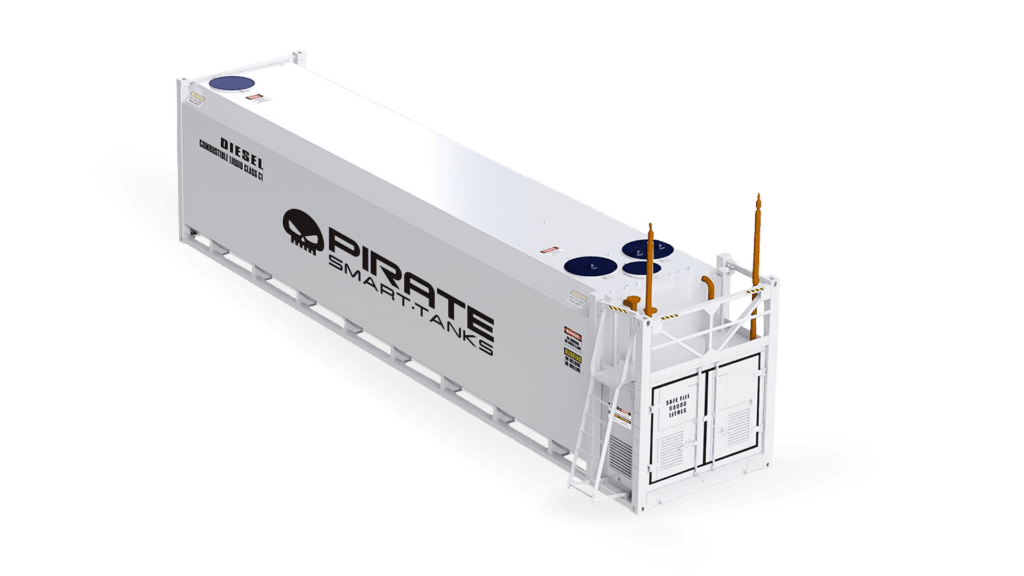

SS 38

Safe Fill Level (L)

35,340L

Dry Weight (Kg)

7500

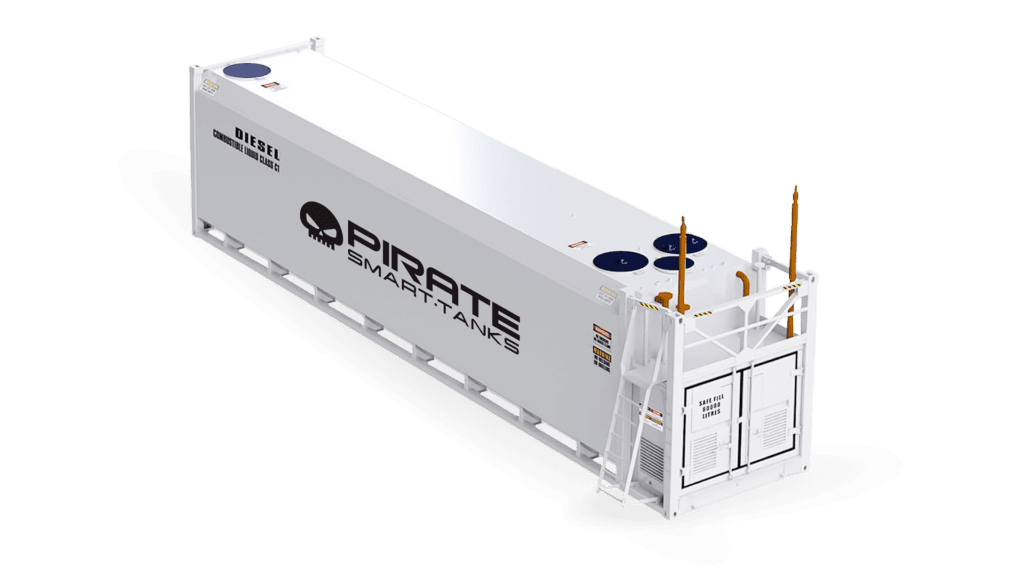

SS 65

Safe Fill Level (L)

65,570L

Dry Weight (Kg)

14500

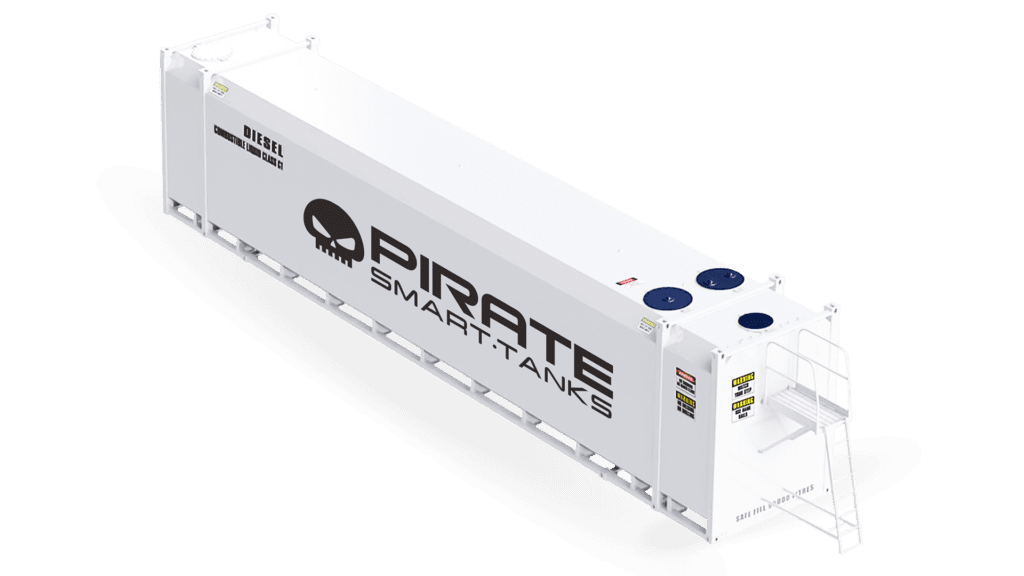

SS 75

Safe Fill Level (L)

73,500L

Dry Weight (Kg)

14500
