BESS BATTERY

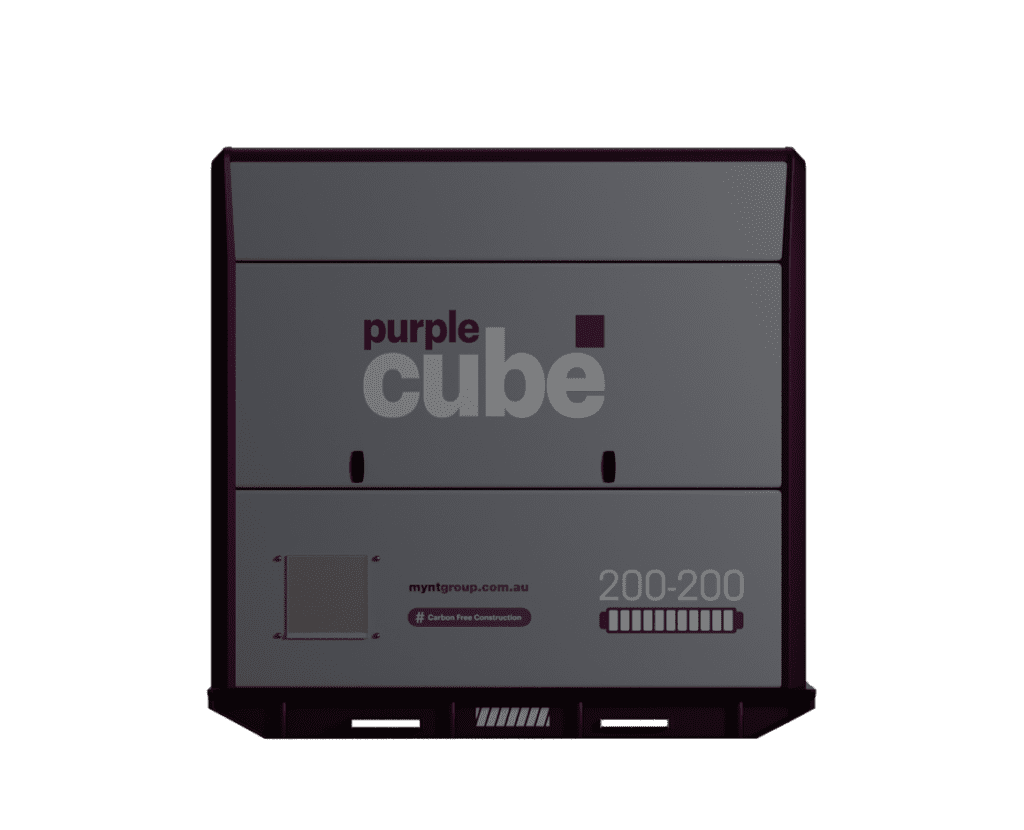

CUBE 200-200

The Purple CUBE range of smart BESS units is designed to replace diesel generators above 75kva. The Purple CUBE Purple range can receive input power from a variety of sources either separately or concurrently, including solar, mains, diesel, wind and hydrogen. The Purple CUBE can also parallel so you can add or subtract capacity during the course of a project to optimise your carbon and budgetary requirements.

ZERO EMISSIONS

ZERO NOISE

PLUG & PLAY

ENERGY Specs

Nominal rated power200 kVA
Voltage415 VAC
Frequency50 Hz
Nominal AC current278 A
Max AC current(10s)236 A
Weight2500 kg

Electrical Specs

Cell chemistryLiFePO4
Nominal capacity188 kWh
Effective capacity169 kWh
Recharging time3h@60kW
Discharging time1.8h@100kW
DoD% (depth of discharge)90%
Lifetime (80% DoD)7000 Cycles @ 80% DoD
Battery management systemAutomotive grade BMS
Temperature controlLiquid cooling / PI heating film

General Specs

Dimensions (L x W x H)2300 x 1150 x 2200 mm
Weight2500 kg
Protection classIP54
Corrosion protectionC3 (C5M)
Operating temperature-20 to +50 ℃
Humidity0-95%
Sound power level<50 dB(A)

Controller Specs

Control panelIndustrial-grade touch-enabled 10”HMI with configurable presets, data visualisation and logs
ProtectionOverload, Overheat, Short Circuit, Earth Fault
Remote generator startDry contact relay / MODBUS
Remote connectivityData-efficient M2M communications via cellular IoT and user notifications to Internet connected devices
Remote automationModoken Capable
Spec Sheet
Purple Catalogue
GA Drawing

Ultimate flexibility

Increase or decrease your storage with the changing demands of your project.

Purple Cube Range

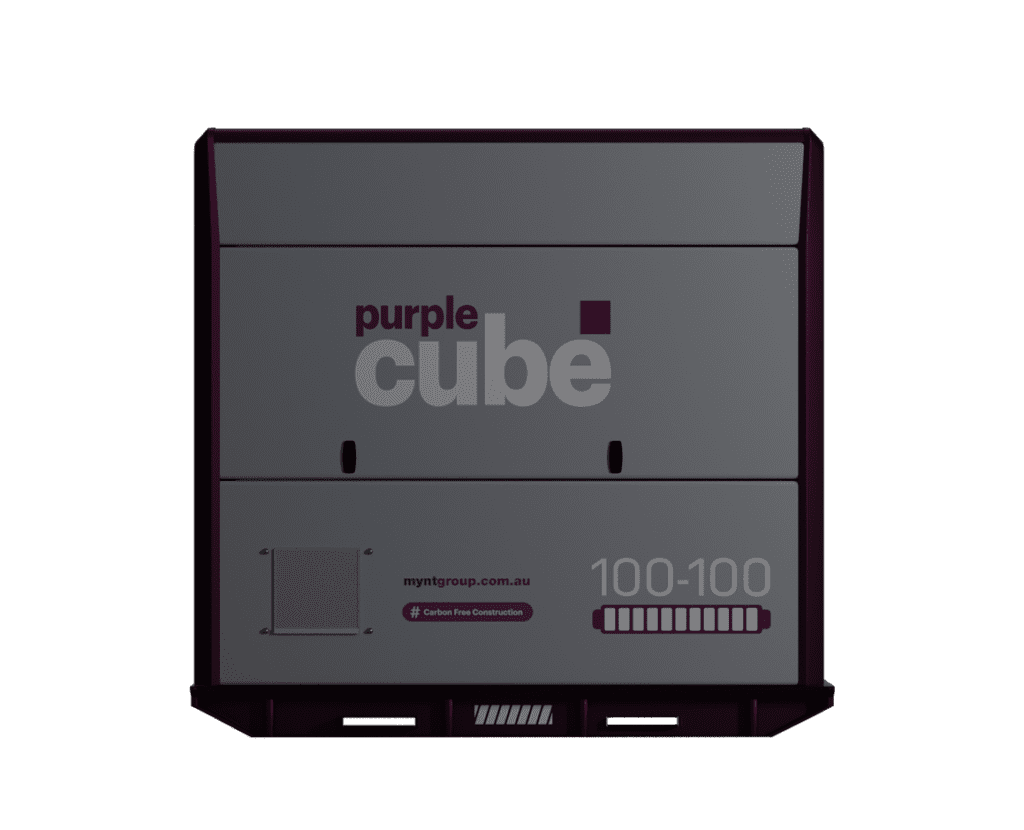

CUBE 100-100

CUBE 200-200

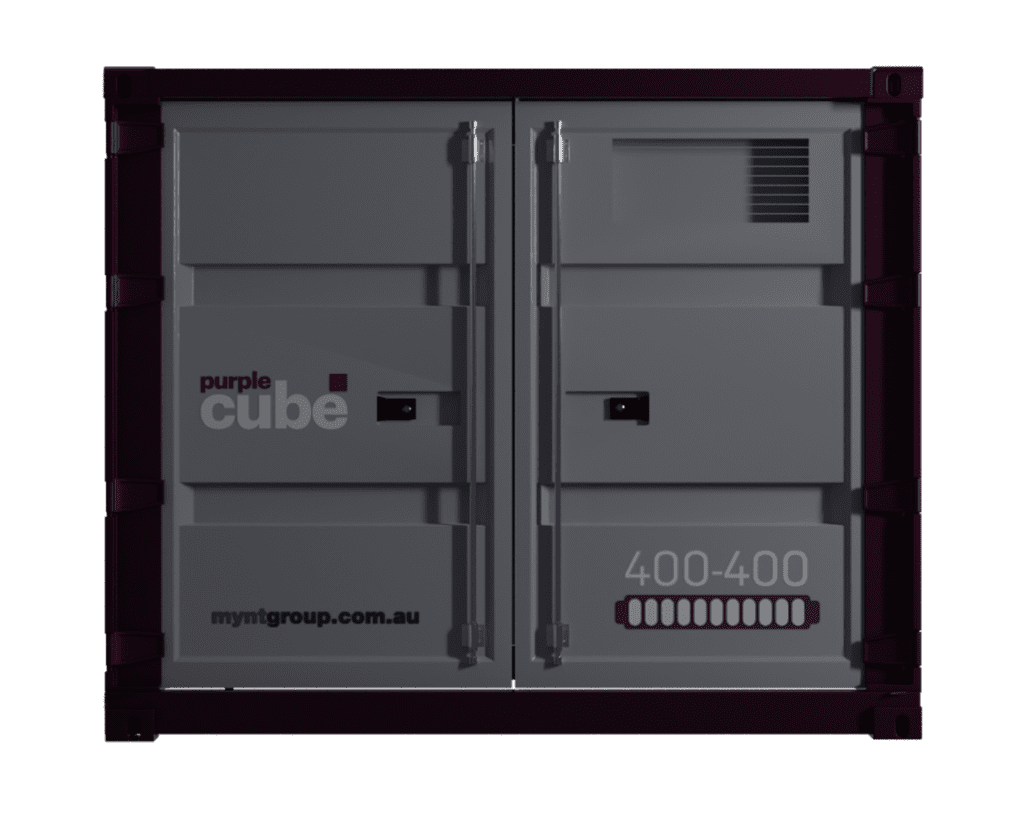

CUBE 400-400

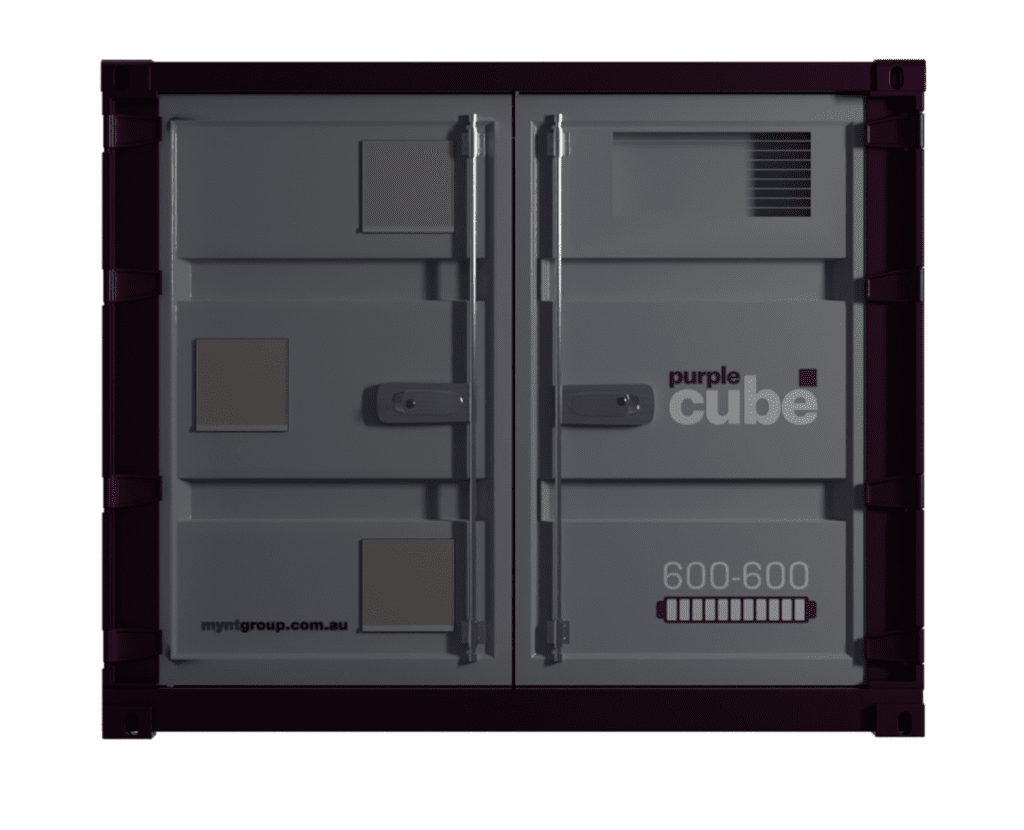

CUBE 600-600
